Truck Mounted Pumps
STEELTECH Series
K20L
- Boom technology: SteelTech
- Boom sections number: 4
- Boom Length: 20m
- Weight Limit: 18t
K24L
- Boom technology: Steeltech
- Boom section number: 4
- Boom length: 24m
K30L
- Boom technology: SteelTech
- Boom sections number: 4
- Boom Length: 30m
- Weight Limit: 26t
K31L
- Boom technology: SteelTech
- Boom sections number: 5
- Boom Length: 30m
- Weight Limit: 32t
K36L
- Series: SteelTech
- Boom sections number: 4
- Boom Length: 36m
- Weight Limit: 26t
K38L
- Boom technology: SteelTech
- Boom sections number: 4
- Boom Length: 38m
- Weight Limit: 32t
K42L
- Boom technology: SteelTech
- Boom sections number: 5
- Boom Length: 42m
- Weight Limit: 32t
K48L
- Boom technology: SteelTech
- Boom sections number: 5
- Boom Length: 48m
- Weight Limit: 41t
K52L
- Boom technology: SteelTech
- Boom sections number: 6
- Boom Length: 52m
- Weight Limit: 44t
K55L
- Boom technology: SteelTech
- Boom sections number: 5
- Boom Length: 55m
- Weight Limit: 44t
K61L
- Boom technology: SteelTech
- Boom sections number: 5
- Boom Length: 55m
- Weight Limit: 44t
CARBOTECH Series
K40H
- Boom technology: CarboTech
- Boom sections number: 5
- Boom length: 40m
- Weight Limit: 26t

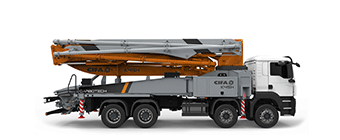

K45H
- Boom technology: CarboTech
- Boom sections number: 5
- Boom Length: 45m
- Weight Limit: 32t
K47H
- Boom technology: CarboTech
- Boom sections number: 5
- Boom Length: 47m
- Weight Limit: 32t
K53H
- Boom technology: CarboTech
- Boom sections: 5
- Boom length: 53m
- Weight limit: 44 ton
K80H
- Boom technology: CarboTech
- Boom sections number: 7
- Boom Length: 80m
- Weight Limit: on demand
TECHNICAL DETAILS
STRENGTH AND RELIABILITY
Booms on CIFA truck mounted pumps combine robustness and reliability. Each section was designed to have maximum structural resistance, reducing to a minimum areas subject to stress.
VERSATILITY AND FLEXIBILITY
Different boom configurations of CIFA truck mounted pumps guarantee maximum operation, versatility and allow to reach any area of the worksite, even those hardly accessible, guaranteeing rapidity when manoeuvring.
PUMPING GROUP
Completely removable, the pumping group ensures a delicate, continuous and regular flow. This technology guarantees an extremely effective system in pumping different kinds of concrete, with aggregates of every size, reducing – with equal payload – the number of cycles per minute ensuring minor wear and a longer life cycle to the machine.
“S” VALVE
The new 9″ valve guarantees, always, maximum intake performance. The special geometry with different thicknesses allows to have a high anti wear resistance.
WEAR PLATE AND RING
Wear plate and ring are geometrically designed and realized with special materials with specific function of high resistance to abrasions and to stress they undergo due to concrete flow.
BOOM PROPORTIONAL DISTRIBUTOR
Ergonomic hydraulic commands for moving the boom.
RADIO COMMAND
Comfortable and light, it allows remote control of the boom and management of main functions of the machine.
VIBRATOR AND HORN CONTROLLED BY CABLE
External acoustic warning connected by cable to make communication easy between pump operator and mixer operator during use.
ELECTRICAL SYSTEMS CAN BE DISCONNECTED
Electrical systems can be disconnected and allow and easy and fast maintenance.
STABILIZATION DISTRIBUTOR
Commands to stabilize the pump on both sides with emergency stop system easily accessible.
REAR CONTROL PANEL
The control panel is towards the end part of the pump, next to the pumping group.
MANAGEMENT SYSTEM
Different control systems can be chosen for max safety when using the truck mounted pump.
LSC (LIGHT STABILITY CONTROL)
To work in full safety with all the outriggers completely opened.
Available for:
Classic Series
Steeltech Series (Open Loop pumping unit)
SMARTRONIC™
Thank to the CAN bus wiring, the system is able to make a complete diagnosis for all the pump components, possible anomalies are immediately indicated. The display shows all the components working or active during pumping such as cylinders, hydraulic pumps, valves, lights and accessories. The system can be updated easily with a simple upload.
Available for:
K31L – K35L – K37L – K41L – K48 – K58L
SMARTRONIC INCLUDES
- ASC (Advanced Stability control)
- Pressure diagnosis
- Complete management control
- Touch rear panel
