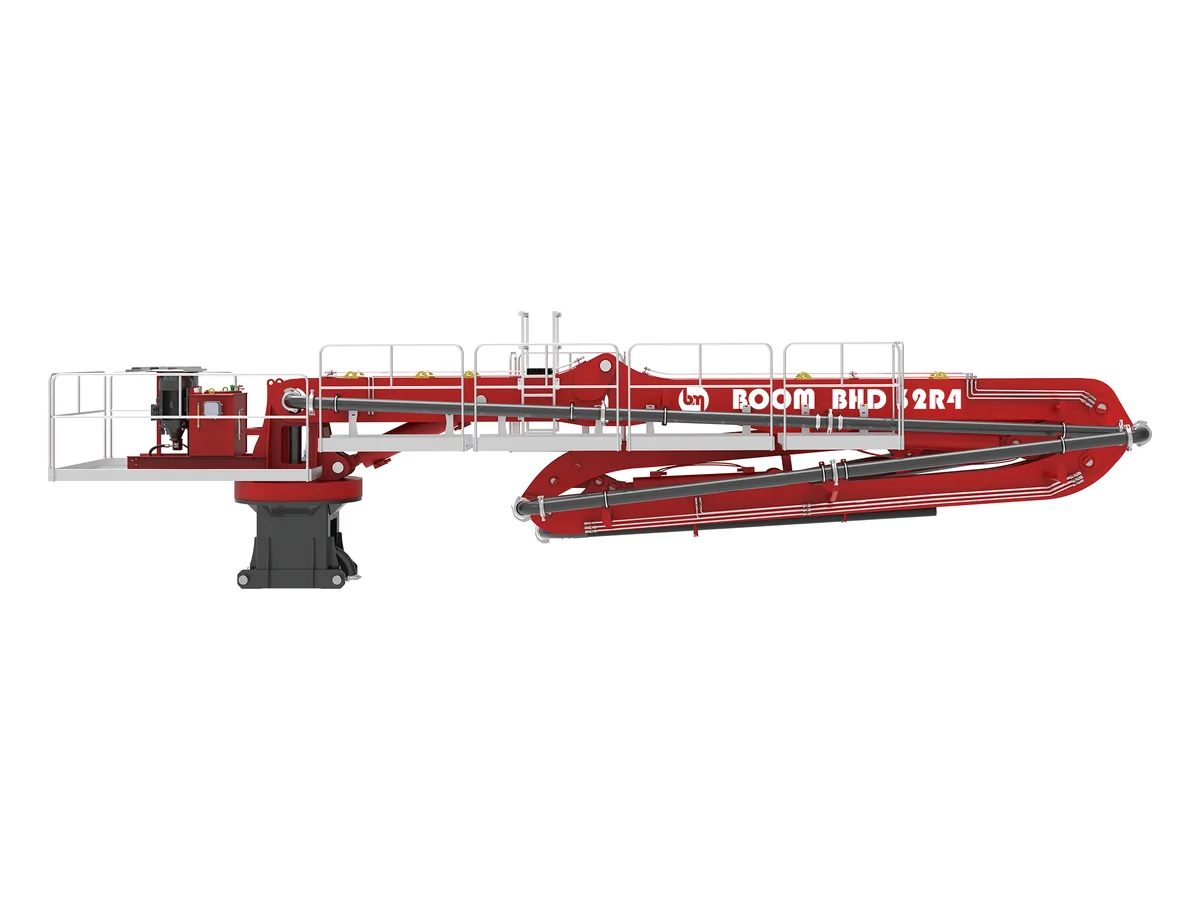

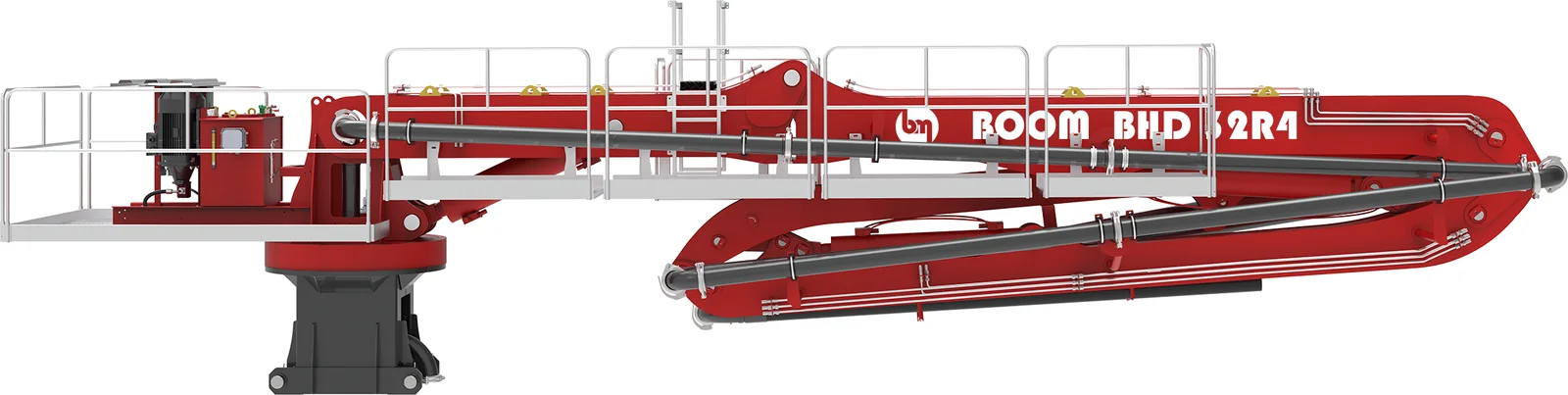

BHD 32R4 Self-Climbing Placing Boom
32 m reach, 4-section R (round) folding boom. Compact when folded, so it is easy to transport and erect.
Prices are not published online; we prepare a quotation for your quantity and delivery location.
Request a quote now
Technical specifications
| Max. horizontal reach (radius) | 32 m |
|---|---|
| Free-standing height | 20700 mm |
| Slewing angle | 400° (optional 360° continuous slewing) |
| Folding type | R type |
| Number of boom sections | 4 |
| Total weight | 17250 kg |
| Heaviest component | 4750 kg |
| Power supply | 3-phase, 380 V / 460 V, 50–60 Hz |
| Hydraulic power unit motor | 18.5 kW |
| System pressure | 32 MPa |
| Pump displacement | 25 cc/rev |
| Oil tank | 180 L |
| Concrete pipe diameter | 125 mm / 5" |
| End hose length | 4000 mm |
| 1st boom section length / unfolding angle | 8800 mm / 0°–87° |
| 2nd boom section length / unfolding angle | 7900 mm / 0°–180° |
| 3rd boom section length / unfolding angle | 7800 mm / 0°–180° |
| 4th boom section length / unfolding angle | 7500 mm / 0°–205° |
| Climbing system | Hydraulic |
| Internal climbing step | 600 mm |
| Floor frame | Standard |
| Lift shaft size (min.) | 950 × 950 mm |
| Mast cross-section | BMS 75B, 750 × 750 × 6000 mm |
| Controls | Radio remote control |
| Manufacturer | BOOM Makina (Türkiye) |
About this product
32 m reach, 4-section R (round) folding boom. Compact when folded, so it is easy to transport and erect.
Mast-mounted placing booms (on a BMS mast) that climb with the building using a hydraulic cylinder. They can be installed in a lift shaft, a slab opening or on an external frame. Quick-connect components keep erection short, and both R (round) and Z-folding booms are available. For high-rise buildings, bridge piers and large foundations.
Component weights and dimensions
| Component | Weight | Dimensions (mm) |
|---|---|---|
| Base and main boom | 4.750 kg | A 5600 × B 2000 × C 2550 |
| Boom assembly | 5.500 kg | A 9850 × B 2100 × C 1500 |
| Cross base | 1.450 kg | – |
| Anchor set (4 × 70 kg) | 280 kg | – |
| Floor frame | 270 kg | – |
| Wedges | 230 kg | – |
| BMS 75B mast section | 2.100 kg | 750 × 750 × 6000 |
Shipping
The complete set can be transported by truck. When shipped in 2 × 40′ OT containers, the cross base is sent as a separate part shipment.
Equipment
Standard:
- Radio remote control
- Hydraulic climbing system (2 climbing cylinders)
- Floor frame and wedges
- Cross base and anchor set (in the complete set)
Optional:
- 360° continuous slewing
- Working platform, ladders
- Y valve, shut-off valve
- Additional mast sections (BMS)
Standard / optional equipment is given for the series; the configuration for your order is confirmed in the quotation.
Manufacturer and support
Manufacturer: BOOM Makina (Türkiye). MOTTO is BOOM Makina’s business partner for West Africa: model selection and quotation, shipment planning, installation, commissioning, training and spare parts support — from Abidjan, Côte d’Ivoire and Istanbul. All series and model comparison: Concrete placing booms.
Technical values are taken from the manufacturer’s catalogue; the manufacturer may change them without notice.
