CIFA Supply & service

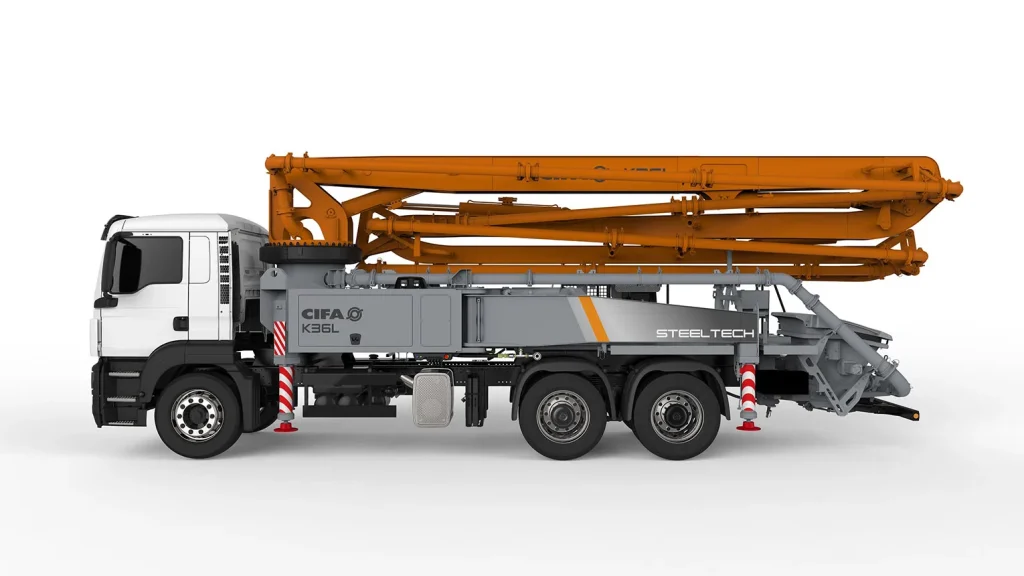

CIFA K36L Steeltech
CIFA K36L Steeltech truck-mounted concrete pump: 4-section Steeltech boom, 36 m boom length. Quotation, spare parts and service from MOTTO.
Prices are not published online; we prepare a quotation for your quantity and delivery location.
Request a quote now
Technical specifications
| Boom technology | SteelTech |
|---|---|
| Boom sections | 4 |
| Boom length | 36m |
| Weight limit | 32t |
| Boom type | B4Z 36/32 — 4 sections, Z folding |
| Vertical reach | 35.6 m |
| Horizontal reach | 31.2 m |
| Minimum unfolding height | 8.4 m |
| Truck | 6×4, 4,500 mm wheelbase |
| Pumping unit | HP1608EC (closed circuit, 80 bar) / HP1606H (open circuit, 53 bar) — theoretical 160 m³/h |
About this product
The K36L is the 36-metre, four-section model of the CIFA Steeltech series. Its B4Z 36/32 boom is Z-folding; according to the manufacturer’s data, vertical reach is 35.6 m, horizontal reach 31.2 m and the minimum unfolding height 8.4 m. It is mounted on 6×4 trucks with a 4,500 mm wheelbase and its total weight stays below 26 tonnes. It is offered with the closed-circuit HP1608EC (80 bar) or open-circuit HP1606H (53 bar) pumping unit, both with a theoretical output of 160 m³/h.
A super-compact machine with a total weight below 26 tonnes, mounted on 6×4 trucks with a 4,500 mm wheelbase for excellent manoeuvrability.
The K36L truck-mounted concrete pump is the perfect choice for small and medium-sized sites. It can also work where high output is needed: bridges and deep pours, car parks and basements. The pump can be fitted with either an open-loop or a closed-loop pumping unit to achieve the highest performance.
Similar models
-
CIFA
CIFA K38L Steeltech
CIFA K38L Steeltech truck-mounted concrete pump: 4-section Steeltech boom, 38 m boom length. Quotation, spare parts and service…
-
CIFA

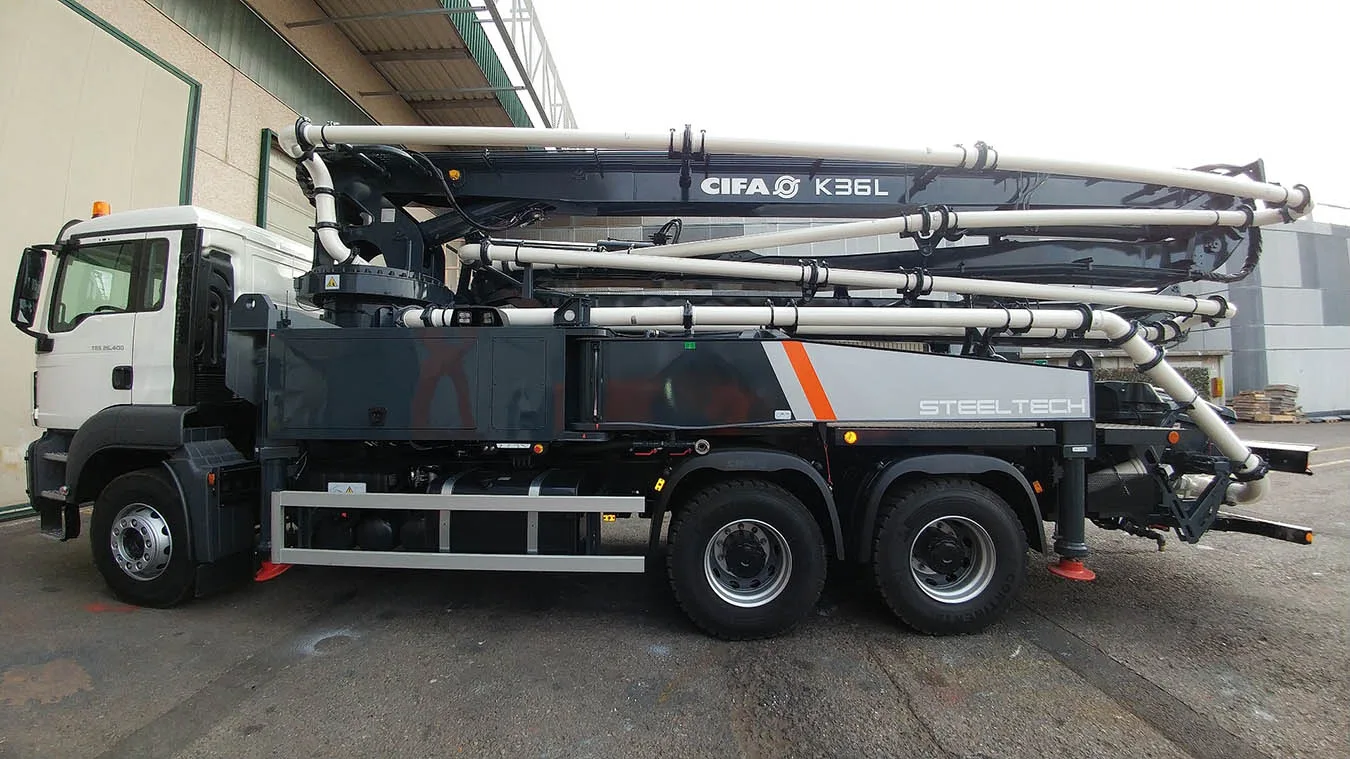

CIFA K36L-5 Steeltech
CIFA K36L-5 Steeltech truck-mounted concrete pump: 5-section Steeltech boom, 36 m boom length. Quotation, spare parts and service…
-
CIFA

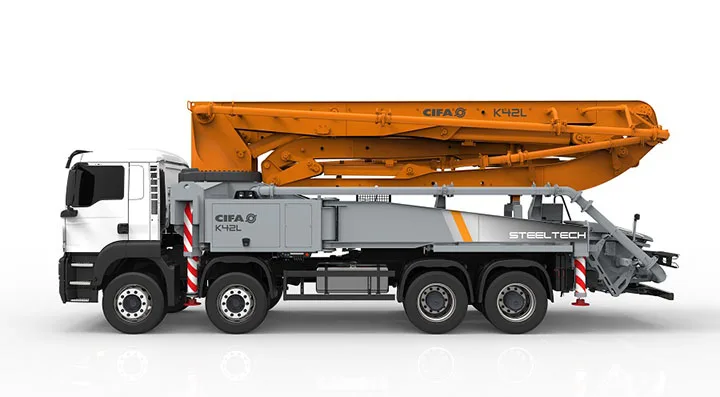

CIFA K42L Steeltech
